Inspection

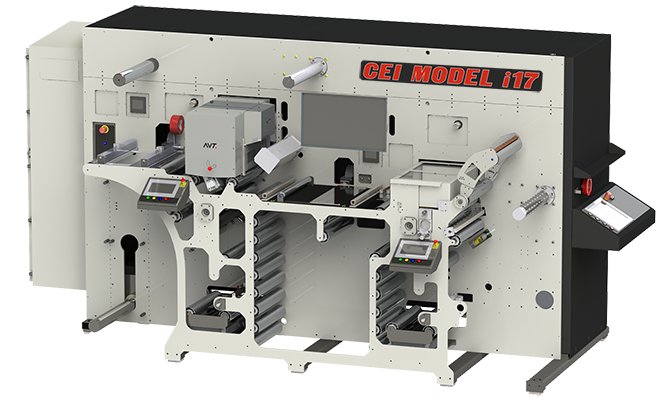

Our CEI i14 and i17 inspection machines are the fastest in the industry and will provide your company with a quicker R.O.I. than any other inspection machine on the market today. Custom designed and manufactured to meet your specific requirements.
Standard Configuration
- 14” (355mm), 17” (432mm)
- Robust frame
- Ergonomic design
- 40” (1016mm) Unwind
- Unwind splicing facility
- Electronic web guide with ultrasonic sensor before camera
- In-feed Servo driven, automatic
pneumatic nip control
- Extended buffer
- Editing splicing facility
- Electronic web guide with
ultra sonic sensor - Area to mount air dry Inkjet heads
- Out-feed Servo driven, automatic pneumatic nip control
- Razor knife slitting
- Web advance
- Internal counter for labels or length
- Servo driven rewind, 3” locked core rewind shaft, taper tension, 24” (610mm) rewind diameter
- Labels-in, labels-out selection
- 1800 fpm
- Intuitive controls
- Job memorization
- Fastest ROI, Period!
Optional Add-ons
- Roll lift with transit assembly
- Line guide sensor for guiding to a
preprinted line - Splice detection
- Flag detection
- Camera integration for 100% defect
detection (camera options available) - Work flow integration when
camera is on press - Inspection with large LED strobe
- Inspection with small LED strobe
- Bulk waste take-up
- Ultrasonic label sensor
- Dual counters
- Manual shear knife slitting with
setting fixture - Crush knife slitting
- Auto shear knife setting system
- Lay-on rollers, with power down and up
- Trim extraction, electric or pneumatic
- Static control
- RFID application and verification available for 1 across applications
- 24” (610mm) dual servo driven rewind, taper tension, 3” locked core rewind shaft
- Upgrade web advance arm with web control arm including chopper
- Slip differential rewind capabilities
- 3/4”- 6”rewind shaft capabilities
(Optional shafts required) - Custom applications available
- Dual voltage 480/208
